CS2000 Technical Specification

CS2000 Installation Instructions Of Optional Outside Panel Or Switch Panel (Page 1 2 3)

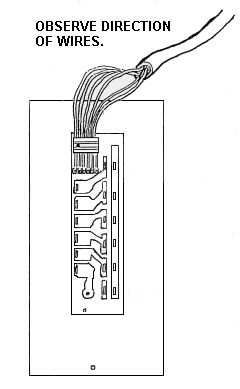

5. Plug the connector into the outside panel. Screw the outside panel into the back box.
6. Plug the CS2000 unit back into the wall outlet. Using the COLOR keys, whose operation is explained in the CS2000 User's Manual, check the outside panel. Assure that the appropriate lights on the outside panel are illuminated with those on the corresponding CS2000 unit.
