Technical Specifications
|
Panel Material:.060 aluminum Finish: paint, fine textured Polane-T. Color: cream (Sherwood Williams: FG3TXA-1698-5210). Available in custom colors. Back Box:.060 aluminum. Supplied by Varitronics. |

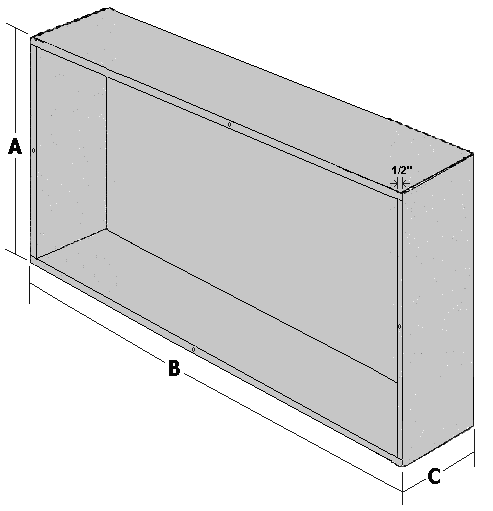

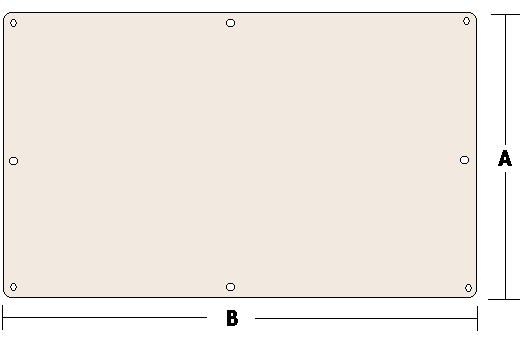

| Part No. | Master Panel: A x B | Back Box: A x B x C |
| #3100 | 6 1/4" x 12 " | 5 1/4" x 11" x 3" |
| #3206 & #3207 | 8 1/2" x 13 1/2" | 7" x 12" x 3" |
| #3210 & #3212 | 10" x 16 1/2" | 8 1/2" x 15" x 3" |
| #3214 & #3216 | 11 1/2" x 24 1/2" | 10" x 23" x 3" |
| #3220 & #3221 | 11 3/4" x 26 1/2" | 10 3/8" x 25" x 3 1/2" |
