5500 Room Panel

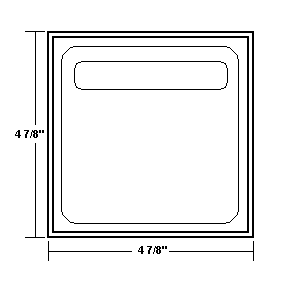

5500 room panel dimensions shown with mounting bezel.

Material: Panel overlay is made of 10 mil nitrogen hardened polycarbonate with room identification slot, and is laminated on anodized .060 aluminum.
Color: Pantone gray PMS 431/420.
Mounting Bezel (required): grey, glass filled injection molded polypropylene; supplied by Varitronics.
Back Box (new construction): standard 2 1/2" deep two gang switch box; supplied by others. DO NOT USE outlet boxes or beveled corner boxes.
Mounting Plate Bracket (existing construction): Caddy MPLS-2 recommended; supplied by others.
